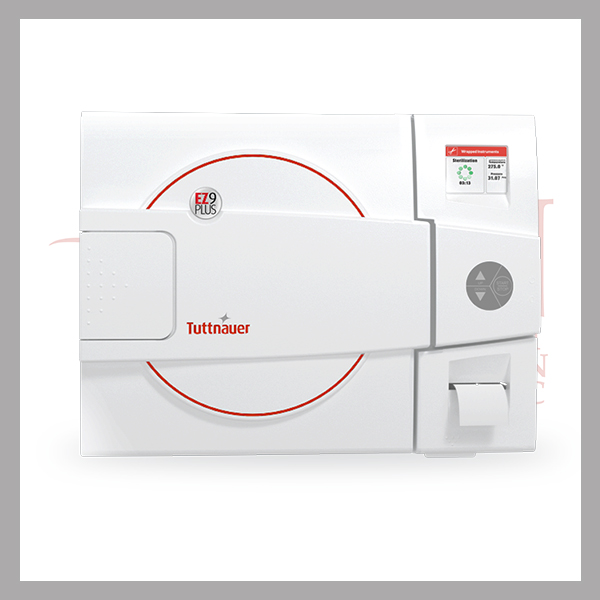

Tuttnauer Ez9Plus Autoclave

Each EZ9Plus fully automatic sterilizer also features Dynamic Air-Removal Technology and an active, closed-door, HEPA-filtered air-drying system to maintain sterility and guarantee efficient drying of packs and pouches. This ensures the door remains closed throughout the dry cycle, encouraging the staff to leave the pouches and packs in the unit until all items are completely dry, a critical step to help ensure the safety of patients, staff, and doctors.

Closed Door Drying - Maintains sterility and ensures efficient drying of packs and pouches

High-Efficiency Air Pump - circulates air in the chamber during the drying cycle

Printer and USB Support - A printer (optional) to print detailed history of each cycle. USB connection to store and transfer ~ 100 cycles of data

Easy to read Control Panel - With program selection, detailed digital display, programmable keys and system indicators

Customizable - Program parameters can be customized and stored

Technical specifications
Overall Dimensions (DxWxH)
24.8” x 19.1” x 15.1”
630mm x 485mm x 384mm
Chamber Volume
19.8 Liter
5.2 Gallon
Chamber Dimensions
9” x 19.8”
230mm x 504mm
Tray Capacity
3 Trays
Tray Dimensions
16,3” x 6,7" x 0.6”,
415mm x 170mm x 16mm
Standard Cassette Capacity
2 full & 2 half*
(loaded horizontally)
Voltage & Frequency
120V
50-60Hz
Power & Current
1400W
12A
Shippping Weight
104 Lbs.
47 Kg.
Warranty
2 years parts and labor
