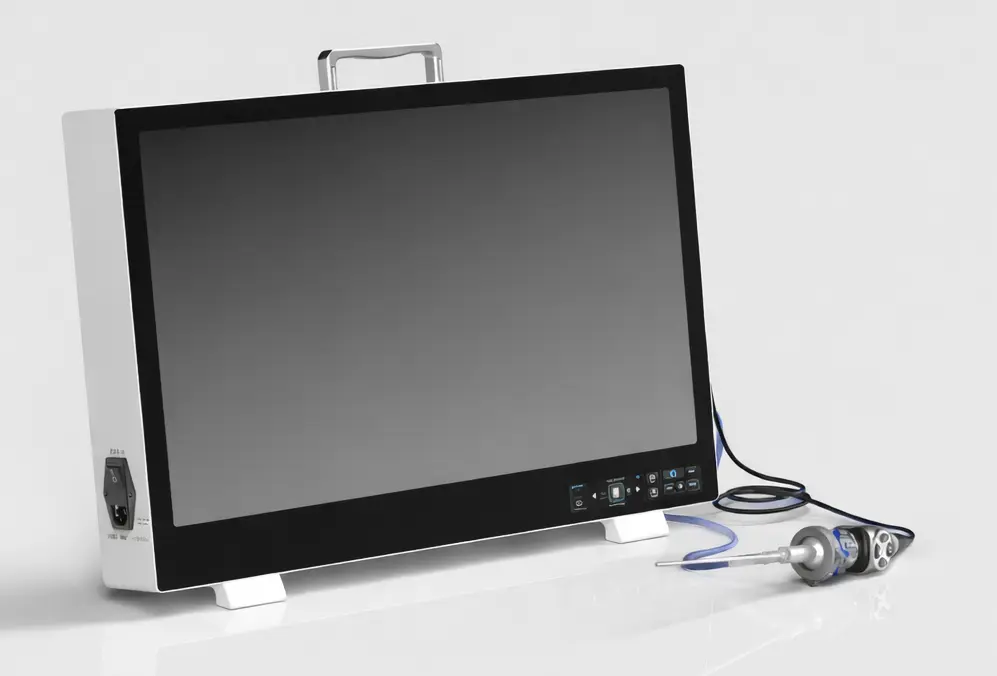

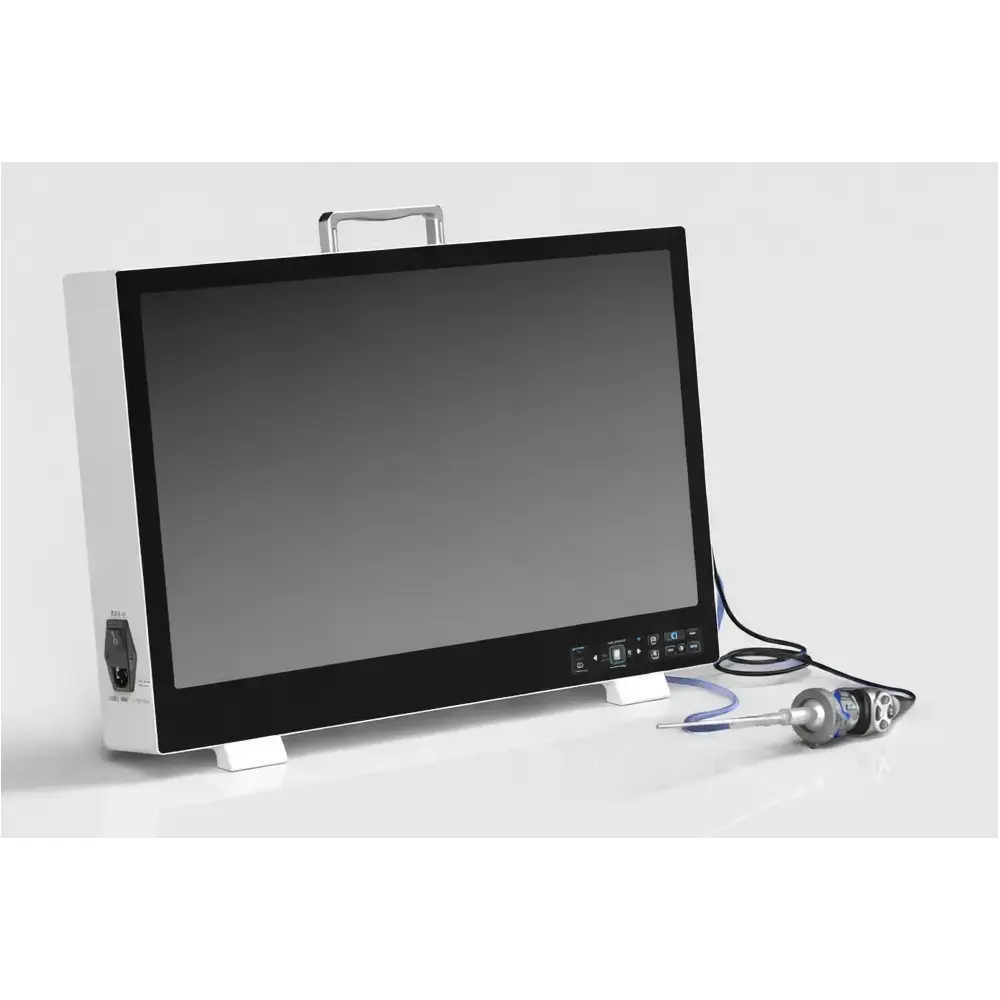

4K All-In-One Endoscopy Camera System
The 4k Endoscopic Camera System and Light Source from Hayden Medical is an updated solution for endoscopic visualization. This system includes a full 4K resolution screen, a camera head with 1/1.8" SONY CMOS sensor, fiber optic light cable USB drive
Key Product Features
• 4K Ultra‑High Definition imaging (3840 × 2160)
• Universal C‑mount compatibility with rigid endoscopes
• Integrated high‑intensity LED light source
• Smart 7” LCD touch control interface
• Integrated photo capture and video recording
• Digital zoom capability
• Five programmable user presets for surgical applications
• Advanced colour and structure image enhancement
Camera Head
|
Imaging Resolution |
4K UHD (3840 × 2160) |
|
Image Sensor |
1/1.8" SONY CMOS |
|
Waterproof Rating |
IPX8 |
Video Processing
|
Horizontal Resolution |
1800 TVL |
|
Signal‑to‑Noise Ratio |
50 dB (±20%) |
|
Scanning System |
Progressive scanning |
|
White Balance |
Automatic |
Display
|
Monitor Size |
27 inch medical-grade display |
|
Control Interface |
Touch buttons / touch screen |
Light Source
|
Type |
Integrated LED cold light source |
|
Power |
80 W |
Video Outputs
|
HDMI |
2 × HDMI 2.1 (3840 × 2160) |
|
DVI |
1 × DVI |
|
SDI |
1 × 3G‑SDI |
Electrical
|
Voltage Range |
100–240 V |
|
Power Consumption |
50 VA |
|
Frequency |
50–60 Hz |
|
Device Protection |
2 × T3.15 A |
Compliance & Safety
|
Protection Class |
Class I (IEC 60601‑1) |
|
Safety Classification |
BF |
|
EMC Standard |
IEC 60601‑1‑2 |
|
Device Classification |
EU MDR 2017/745 Annex VIII – Class I |
System Functions
|
Image Controls |
White balance |
|
Image Control |
Freeze function |
|
Zoom |
Zoom in / Zoom out |
|
Storage |
USB storage |
|
Capture |
Photo capture / video recording |
