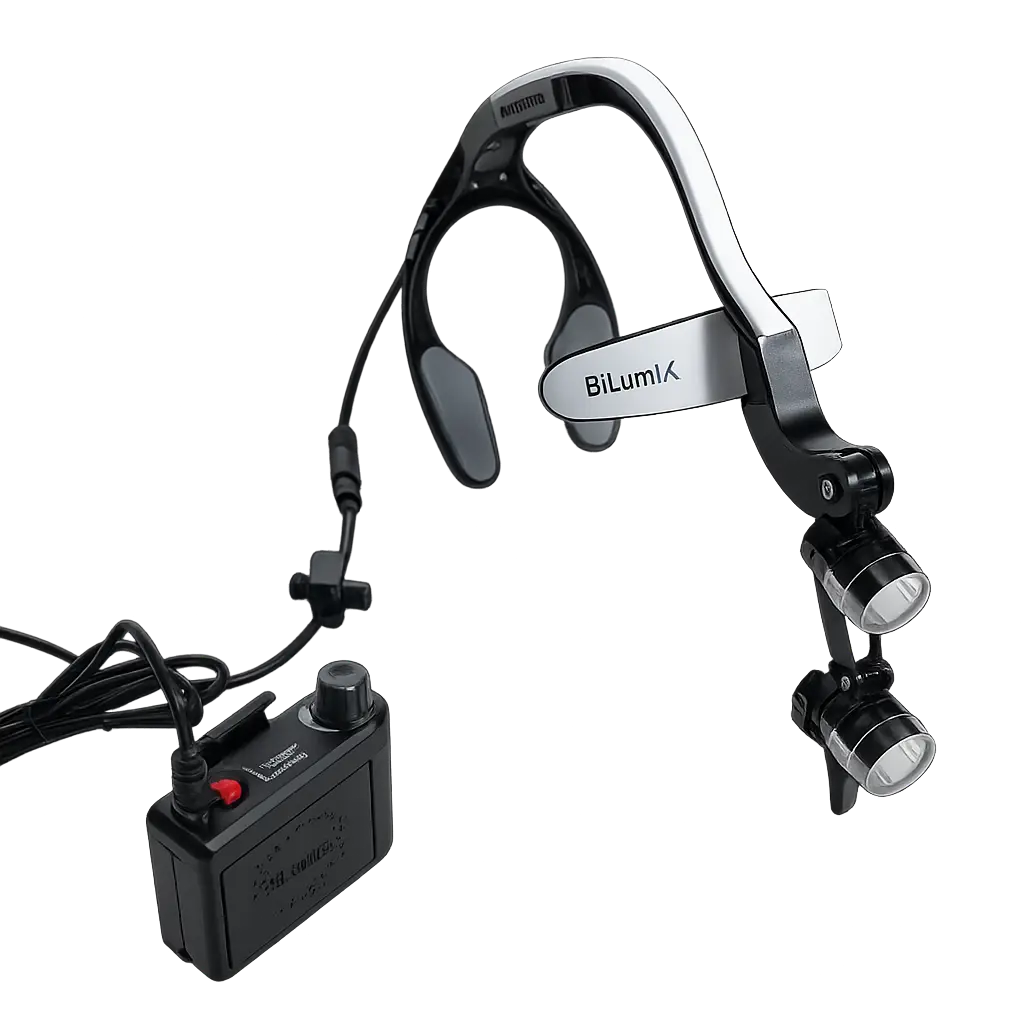

BiLumix Headlamp Gen 3
The BiLumix™ Gen 3 Headlamp delivers high intensity, shadow free illumination for surgical procedures and clinical examinations. Designed for comfort and performance, this lightweight, battery-powered headlight eliminates nose pressure associated with traditional loupe-mounted systems making it ideal for extended use in the OR, procedure rooms, and exam settings.
With dual light sources for shadow reduction and a long-lasting LED system, the Gen 3 provides consistent, focused illumination where precision matters most.

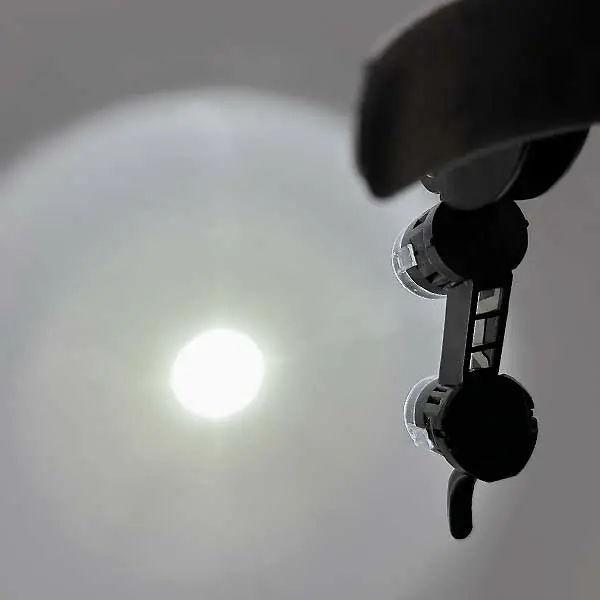

- Shadowless Effect
Dual-angle lighting minimizes shadows - Dual Diffused Lights
Minimized shadows for clearer visibility - Open-Back Design
Comfortable fit for long or tied hair - External Battery Pack
Extended runtime & Reduced weight on the head - Steady, Secure Fit
Dual-point grip for stability - One-Touch Power Control
Large, easy-to-press button - Clear Power Indicator
Check status without removing the headlamp - Intuitive Brightness Dial
Smooth, easy-grip control - Warranty (1 year)
Important Notes
- Loupes are not included
- The BiLumix™ 1.5x Loupe and battery are not covered under warranty.
- Light intensity will vary based on working distance
Light Source
Brightness
Max 100,000 Lux
(Intensity varies with distance)
Lighting Type
Diffused lights
Weight(g)
Headlamp Weight
123.0g
Battery Weight
169.5g
Cable Weight
27.5g
Dimensions(mm)
Headlamp(W×D×H)
• Max: 405 × 115 × 152
• Min: 295 × 115 × 152
Battery(W×D×H)
82.0 × 34.9 × 71.6
Cable Length
• Headlamp Cable (320mm)
• Extension Cable (1,370mm)
Battery Life
With maximum intensity
About 7.5 hours using continuously
With medium to low intensity
12 ~ 16 hours using continuously
Battery
Charging Time
About 4.5 hours
Charger Output
3,500 mAh (7.4 Volts)
Charger Input
USB Type-C (included)
Battery Type
Lithium-ion
Included In Package
1 x Battery
1 x Battery Dock
1 x USB type-c
1 x Travel Case
1 x Light Cap - Clear
1 x Mini hex key for adjusting joint
Compatible Products
Loupes
1.5x Loupe
2.5x Loupe / 2.5x Loupe FLEX
4.0x Loupe / 4.0x Loupe FLEX
Add on
Light Filter Cap (pair)
Face Shield X2
Replaceable Parts
Forehead Cusion
Rear Head Support Leaf
Light Source Handle
