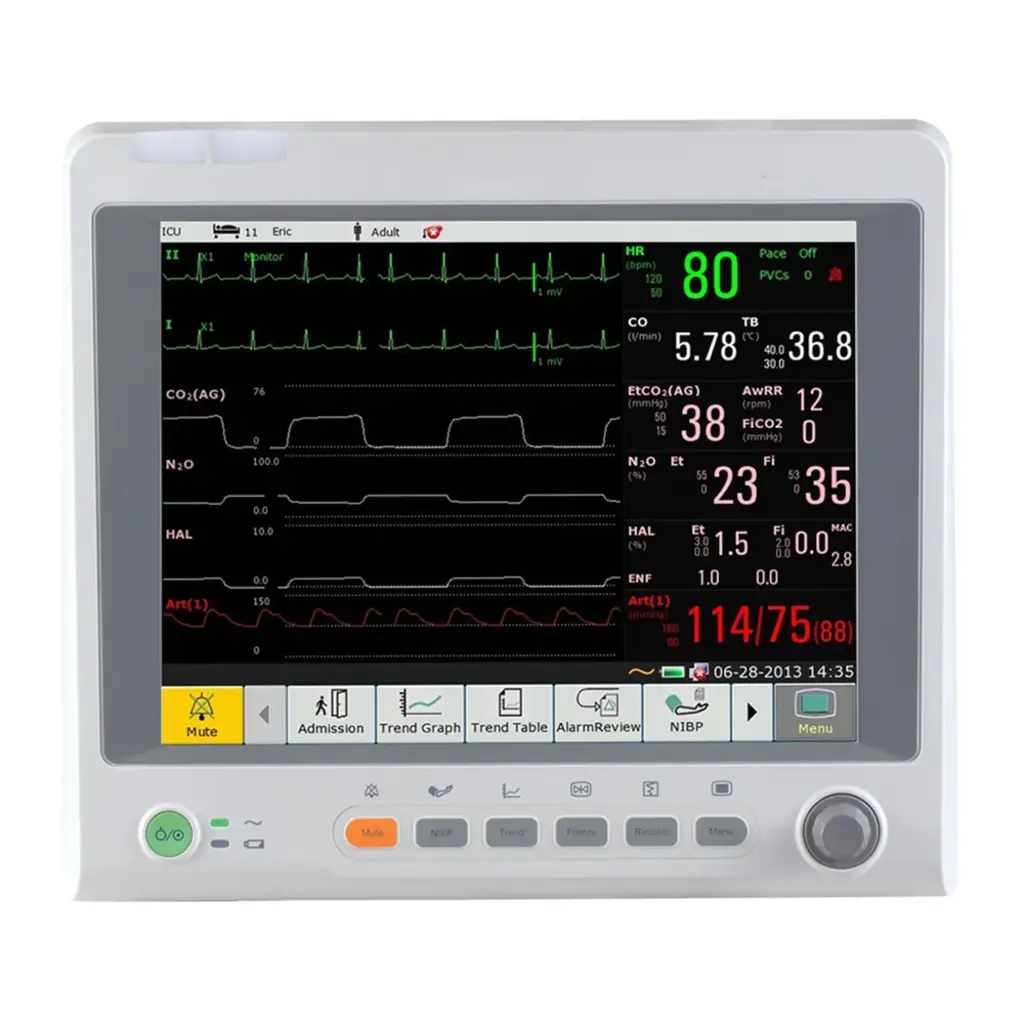

Edan iM70 Patient Monitor

https://www.haydenmedical.com/web/image/product.template/50665/image_1920?unique=b7459b9

This Monitor offers a comprehensive array of parameters and meets the diverse clinical needs across various settings, ranging from general wards to intensive care units.

Features:

  • 12.1" Touch screen display and WiFi

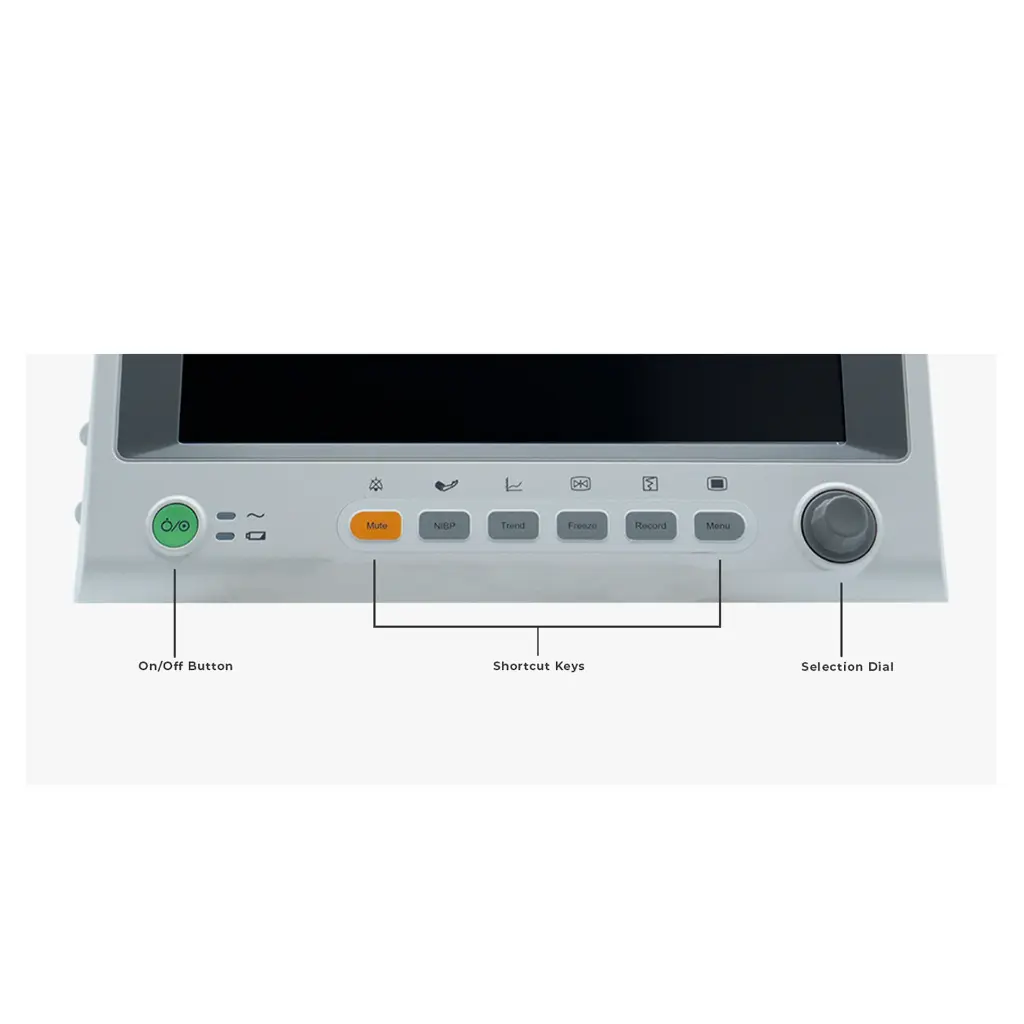

  • No-fan design, night mode, pitch tone, shortcut menu, large font display, customizable alarms, and dual IBP slots
  • HL7 support and bi-directional communication with the central monitoring system
  • Arrhythmia, S-T Analysis, and OxyCRG
  • PhaseIn Masimo Multigas compatible
  • 120 seconds full-disclosure waveforms review and 120-hour graphic and tabular trends of all parameters
  • iSEAP™ ECG - Optimized for arrhythmia detection, pacemaker detection, and HR measurement
  • iMAT™ SpO2 - Outstanding motion resistance and low perfusion resistance performance
  • iCUFS™ NIBP - Optimized for cardiac patients, hypertensive patients, and neonatal patients
  • Standard Parameters: 3/5-lead ECG, RESP, NIBP, Edan SpO2, 2-TEMP, PR, and HR

$ 4,200.00 4200.0 USD $ 4,200.00

$ 4,200.00

Please contact us for a quote.

  • Unit Options

This combination does not exist.

SKU - IM70-TOUCH-WIFI
Contact Us

Terms and Conditions

Share

  • Available in 8 Configurations:
    • Base Model (IM70-TOUCH-WIFI) - Standard parameters
    • With Thermal Printer (IM70-TOUCH-WIFI-P) - Standard parameters with thermal printer installed
    • With G2 CO2 Module (IM70-G2-TOUCH-WIFI) - Standard parameters with internal sidestream G2 CO2 moduleWith Edan Multigas Module, Thermal Printer, and Paramagnetic O2
    • With Thermal Printer and G2 CO2 Module (IM70-G2-TOUCH-WIFI-P) - Standard parameters with internal sidestream G2 CO2 module and thermal printer installed
    • With Edan Multigas Module and Paramagnetic O2 (IM70-G7O2-TOUCH-WIFI) - Standard parameters with Edan Multigas module with paramagnetic O2
    • With Edan Multigas Module, Thermal Printer, and Paramagnetic O2 (IM70-G7O2-TOUCH-WIFI-P) - Standard parameters with Edan Multigas module with paramagnetic O2 and thermal printer installed
  • Accessories Included:
    • Standard:

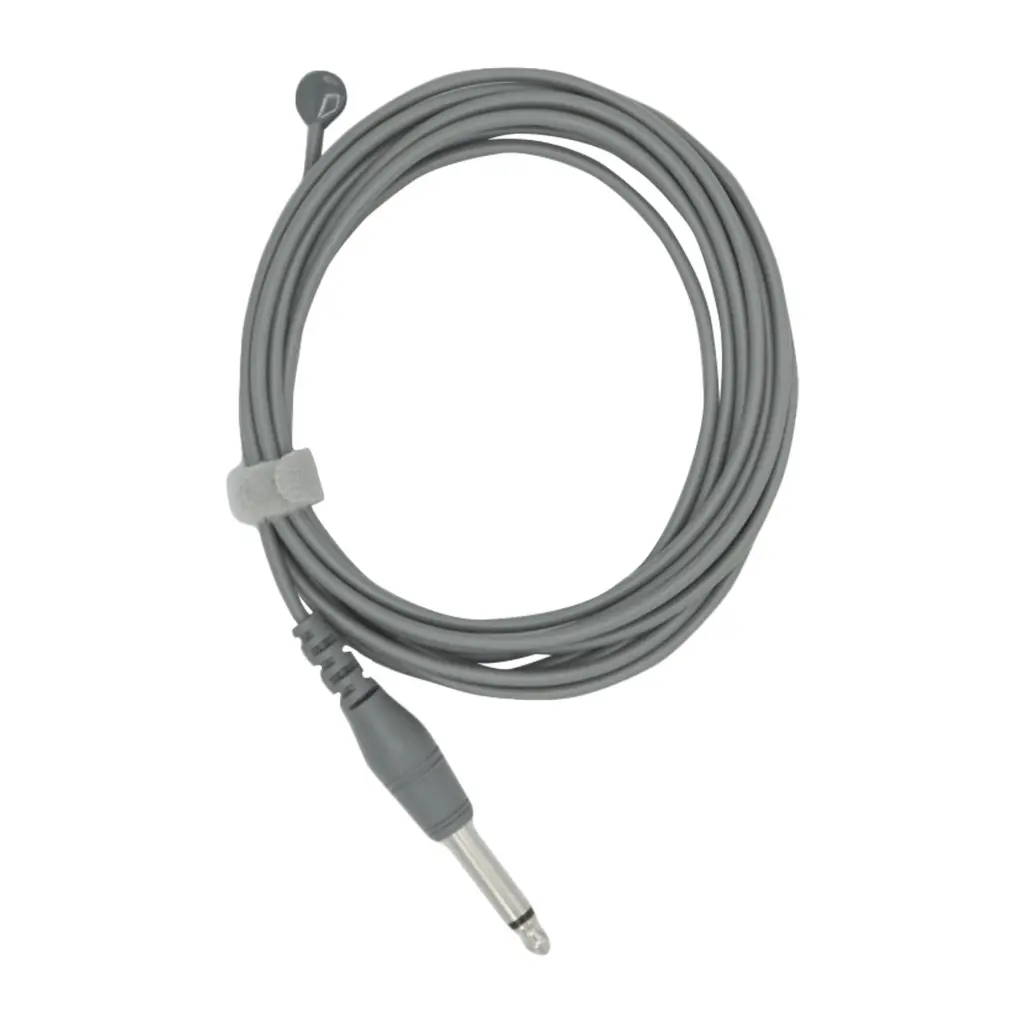

      • Skin temperature probe

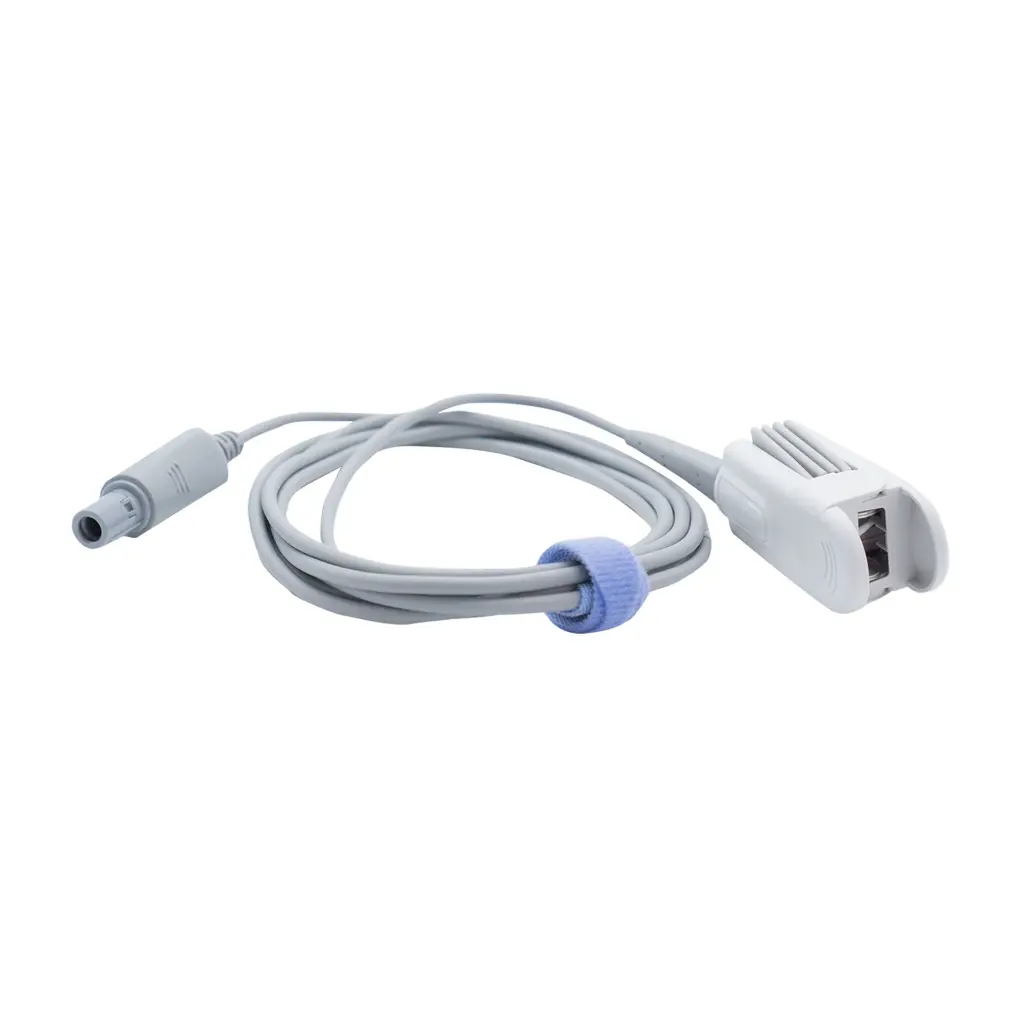

      • Adult reusable SpO2 sensor
      • Adult non-invasive blood pressure cuff - Limb range: 25 cm - 35 cm

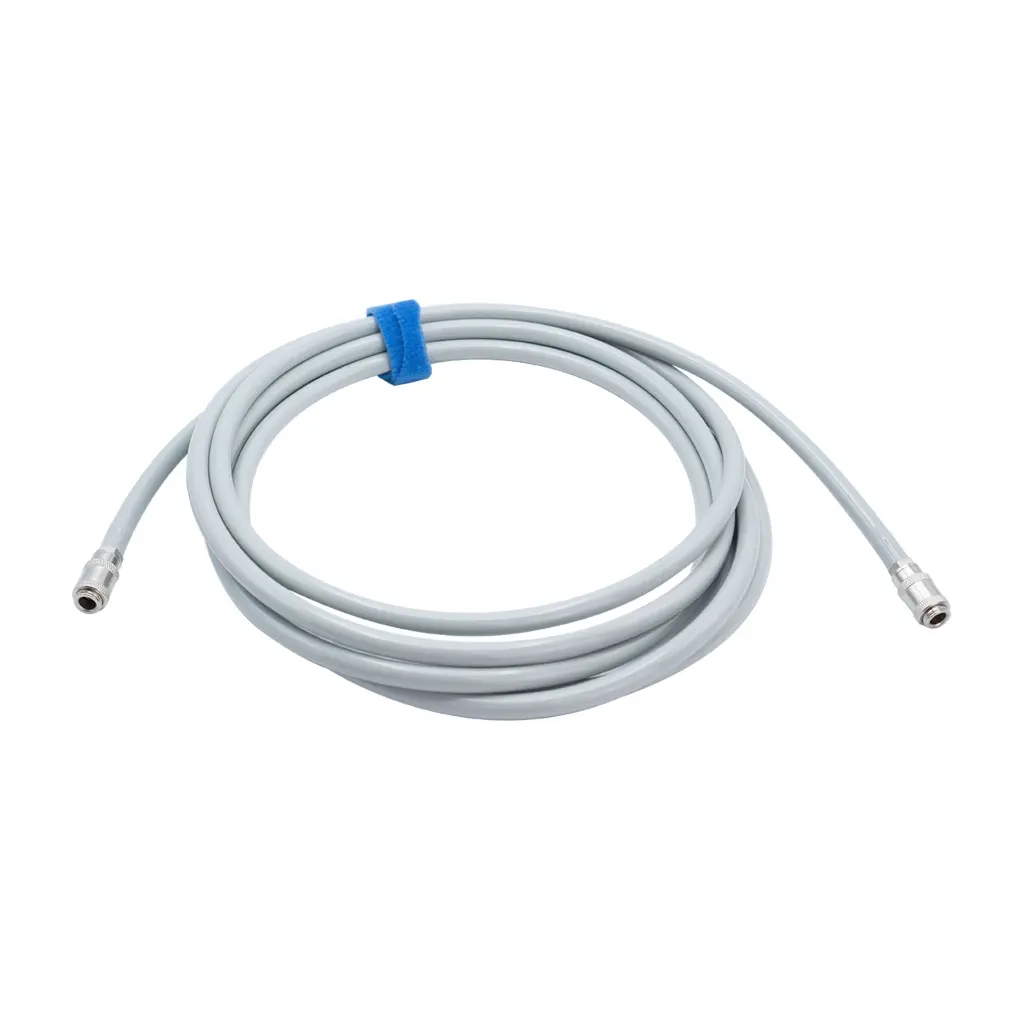

      • Non-invasive blood pressure tube with connector - 3 meters

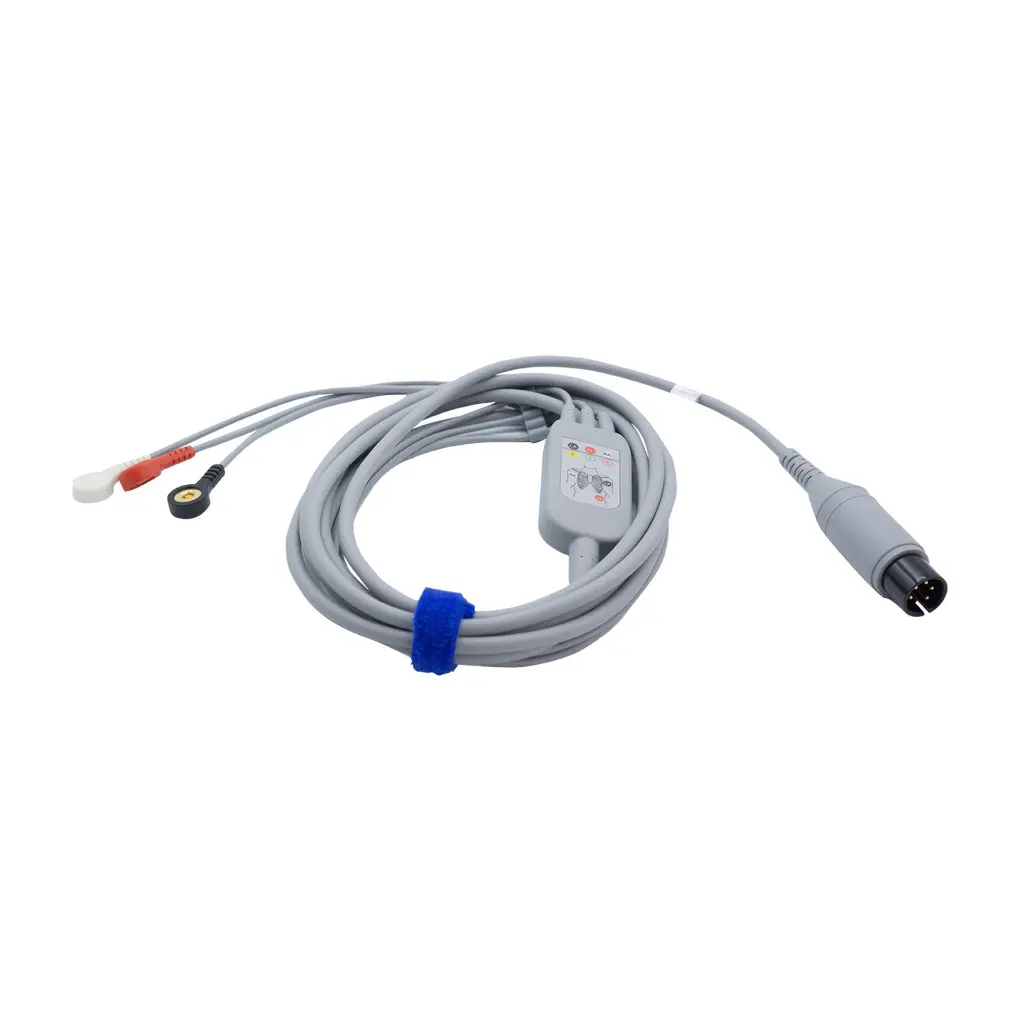

      • 3-Lead ECG integrative cable with lead wires
      • Snap electrodes

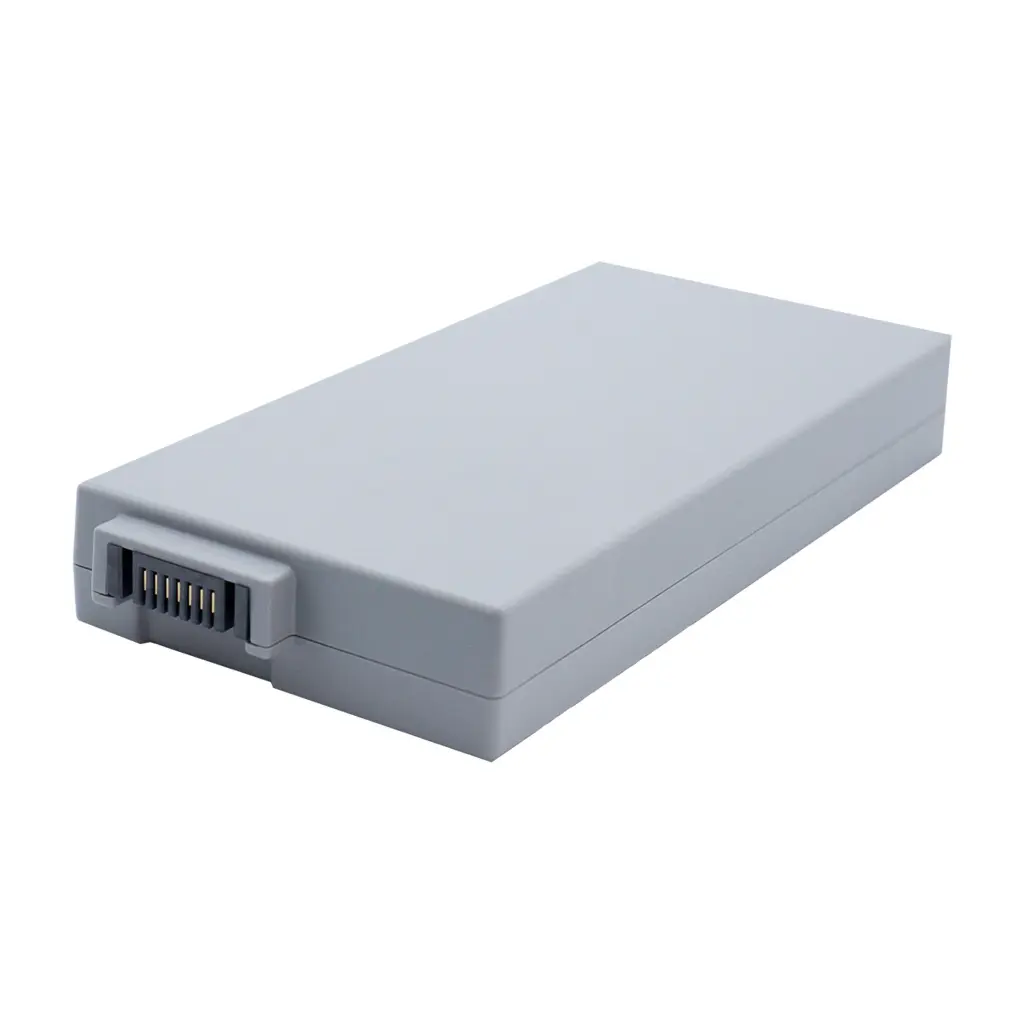

      • Rechargeable lithium-ion battery - 14.8V, 4200 mAh
      • Power cord
      • Grounding cable
    • G2 CO2 (Optional):
      • Water trap
      • Adult nasal CO2 sampling cannula
      • Disposable CO2 sampling line with male Luer lock

Technical Specifications:

  • Display:
    • Color TFT LCD: 12.1"
    • Resolution: 800 x 600
    • Waveforms Displayed: Up to 11
  • Thermal Printer (Optional):
    • Print Speed: 25 mm/s, 50 mm/s
    • Power Supply:
      • AC Power: 100V ~ 240V AC, 50/60 Hz
      • Battery: 14.8V rechargeable lithium-ion
  • Warranty: 2 Years
  • Overall Dimensions: 12.91" L x 6.22" W x 11.22" H
  • Actual Product Weight: 12.10 lbs

PARAMETERS

RESP

  • Method: Trans-thoracic impedance
  • Operation Mode: Auto/Manual
  • RR Measurement Range:
    • Adult: 0 rpm ~ 120 rpm
    • Neonate/Pediatric: 0 rpm ~ 150 rpm
  • Resolution: 1 rpm
  • Apnea Alarm Threshold (in seconds): 10, 15, 20, 25, 30, 35, 40
  • Band Width: 0.2 Hz - 2.5 Hz (-3 dB)
  • Sweep Speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s

SPO2

  • Measurement and Alarm Range: 0% ~ 100% (SpO2)
  • Resolution: 1%
  • Accuracy: +2% (70% ~ 100%, Adult/Pediatric), +3% (70% ~ 100%, Neonate)
  • PR Measurement:
    • Resolution: 25 bpm - 300 bpm
    • 1 bpm
    • Refresh Rate: 1 second

TEMP (2 Channels)

  • Measurement/Alarm Range:
    • Resolution: 0°C ~ 50°C
    • Accuracy: 0.1 °C
  •  Channel: +1 °C (without probe) Dual-channel. Provide T1; T2; ΔT

 CO2 SIDESTREAM (Optional)

  • Range: 0% ~ 13% (0 mmHg - 100 mmHg)
  • Accuracy: +2 mmHg < 5.0% CO2 < 6% of the reading > 5.0% CO2
  • Sample Flow Rate: 100 mL/min ~ 200 mL/min

NIBP

  • Method: Automatic Oscillometric
  • Operation Modes: Manual/Automatic/Continuous
  • Auto Measurement Time Interval (in minutes): 1, 2, 3, 4, 5, 10, 15, 30, 60, 90, 120, 240, and 480
  • Measurement Unit: mmHg/kPa
  • Measurement Types: Systolic, Diastolic, Mean
  • Pressure Range:
    • Adults:
      • Systolic: 40 mmHg ~ 200 mmHg
      • Diastolic: 10 mmHg ~ 160 mmHg
      • Mean: 20 mmHg ~ 235 mmHg
    • Pediatrics:
      • Systolic: 40 mmHg ~ 200 mmHg
      • Diastolic: 10 mmHg ~ 150 mmHg
      • Mean: 20 mmHg ~ 165 mmHg
    • Neonates:
      • Systolic: 40 mmHg ~ 135 mmHg
      • Diastolic: 10 mmHg ~ 100 mmHg
      • Mean: 20 mmHg ~ 110 mmHg
  • Resolution: 1 mmHg
  • Accuracy:
    • Max Mean Error: +5 mmHg
    • Max Standard Deviation: 8 mmHg
  • PR from NIBP Measurement Range: 40 bpm ~ 240 bpm
  • Resolution: 1 bpm
  • Accuracy: 3 bpm or 3.5%

ECG

  • Lead Type: 5-lead and 3-lead selectable
  • Gain: Auto, x 0.125, x 0.25, x 0.5, x 1, x 2, x 4
  • Sweep Speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s
  • ECG HR Range:
    • Adult: 15 bpm - 300 bpm
    • Pediatric/Neonate: 15 bpm - 350 bpm
  • Resolution: 1 bpm
  • Accuracy: +1 bpm or +1%
  • Filter:
    • Diagnostic Mode: 0.05 Hz ~ 150 Hz
    • Monitoring Mode: 0.5 Hz ~ 40 Hz
    • Surgical Mode: 1 Hz ~ 20 Hz
  • ST-Segment Detection:
    • Measurement Range: ~2.0 mV ~ 2.0 mV Alarm
    • Range: ~2.0 mV ~ 2.0 mV
